Carcharhinus Louganis (Greg the Shark) - ArtPrize 2014 Entry Work Log

I have been busy working on this years ArtPrize entry, it is based on a sketch I did in 1992 of Greg Louganis from a small poorly printed two inch black and white advertisement I saw in a copy of People magazine. Below is an early concept render that the finished work is based on.

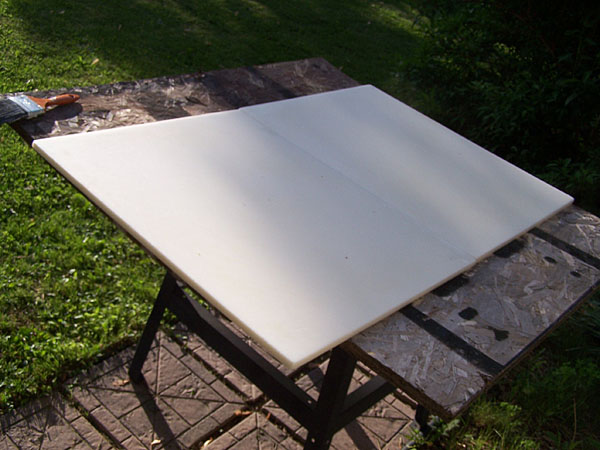

Last year at ArtPrize I met the owners of a business called Evergraph and they introduced me to lithophanes, once I figured out that lithophanes could be CNC cut from HDPE butcher block material I knew exactly what my entry was going to be. Below are the two donated 24"x30" butcher blocks that will make up the main part of the project, they will be brushed with liquid bleach and then left in the sun to whiten.

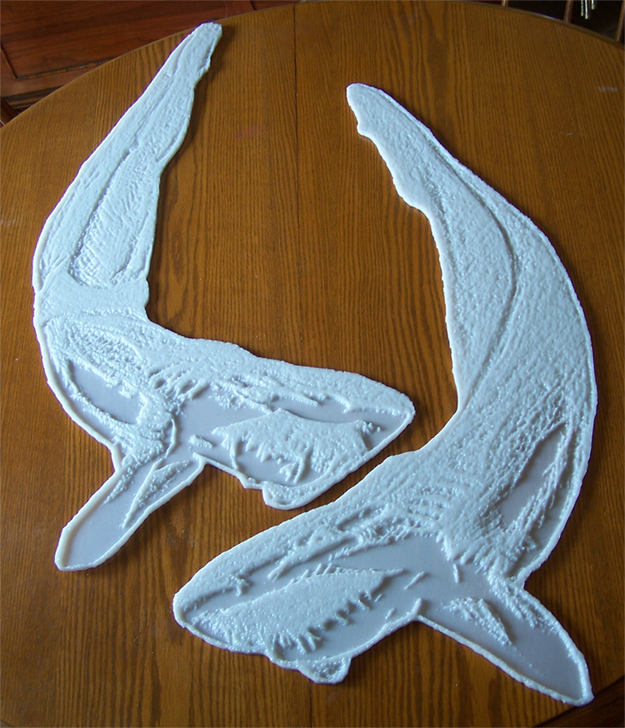

I contacted the owners of Evergraph and explained what I had planned, a couple of days later I delivered both HDPE butcher blocks to them. They did an absolutely top notch job using a raw material foreign to the standard, the lithophanes measure 30" tall each and are awesome.

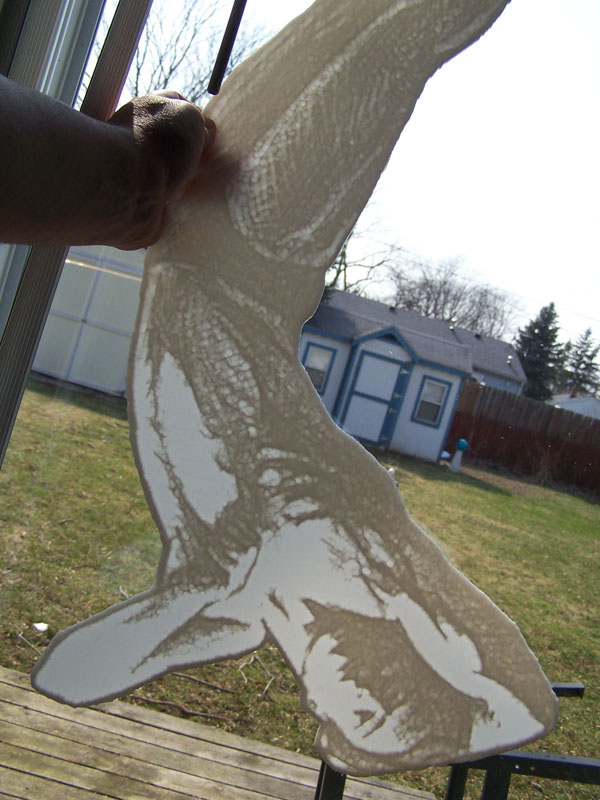

Here is how they work, hold them up to a light source and they become a black and white image. The areas where the material is thickest are dark and the thin areas show whiter as more light shows through.

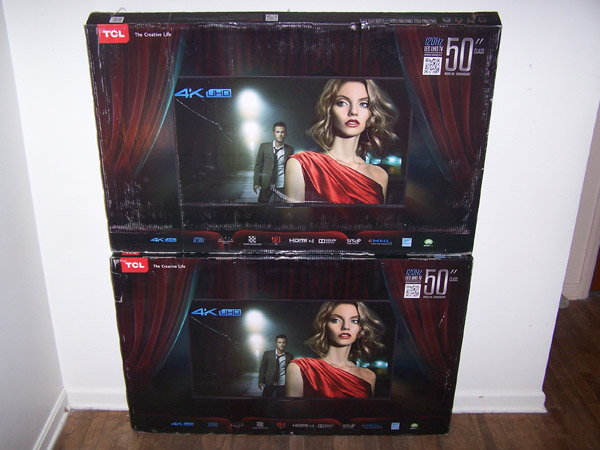

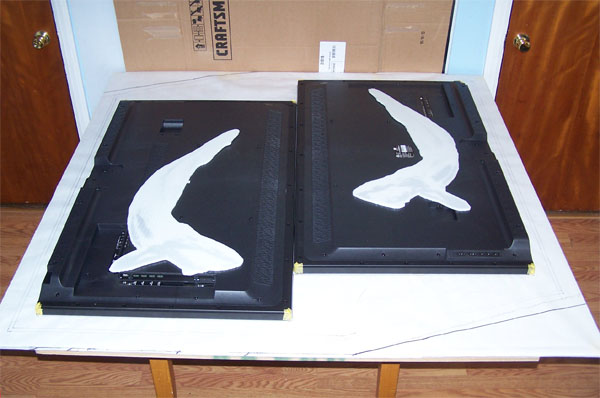

I spent a lot of time trying to figure out how best to illuminate my lithophanes, but then it occurred to me that I could use a really expensive large high end HDTV and glue them to the front.  I decided against it because I wanted the TV to be replaceable should it happen to break but more importantly I could not afford a single HDTV big enough to accommodate both lithophanes, with that said the twin 50" 4K panels I chose for the project are shown below.

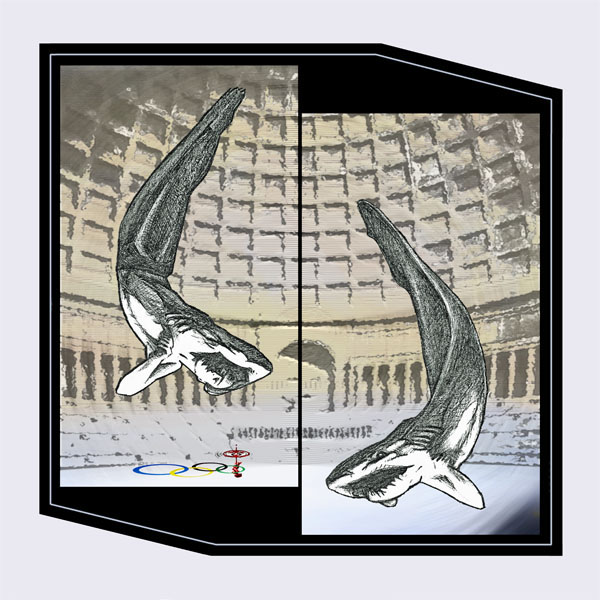

Now to come up with a visually interesting two panel design sketch, the panels have to be used opposite the norm and will have to display in a double portrait mode... both sitting side by side would be visually unappealing though, below is the design mockup I decided to aim for.

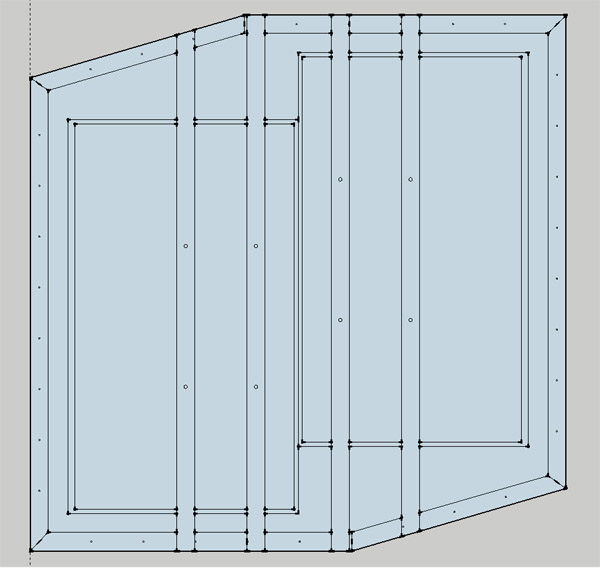

Like all my other projects that require spot on accuracy I bust out the Sketchup, below is my 3D design render blueprint.

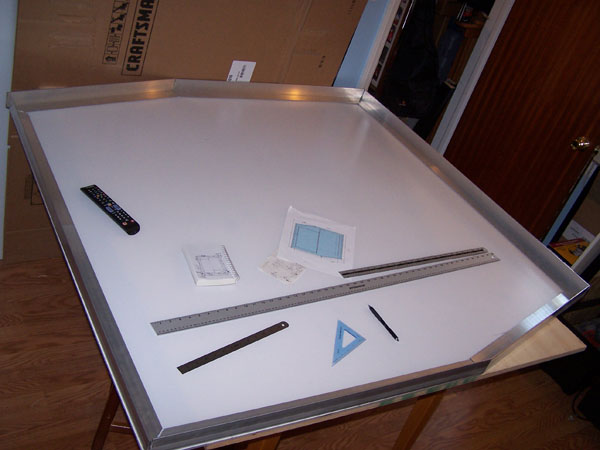

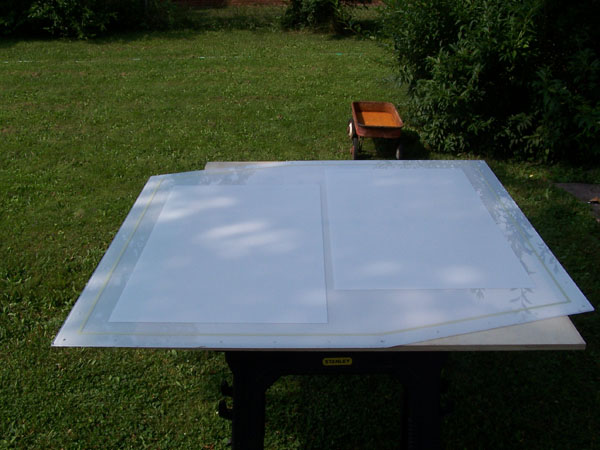

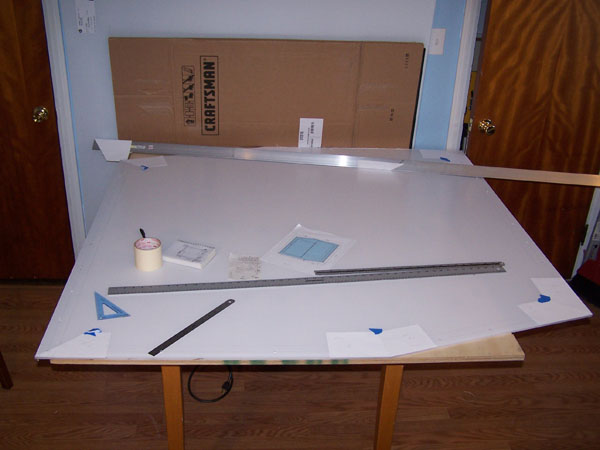

I sourced a 50"x50"x1/4" sheet of clear polycarbonate acrylic from Alro Plastics and laid out my TV's and lithophanes to get a feel for the final product.

I measured and cut the corner angles off the 1/4" sheet of clear acrylic and then measured my aluminum angle in preparation for cutting them.

The aluminum angle outer framing is cut to fit and bolt holes are marked for drilling.

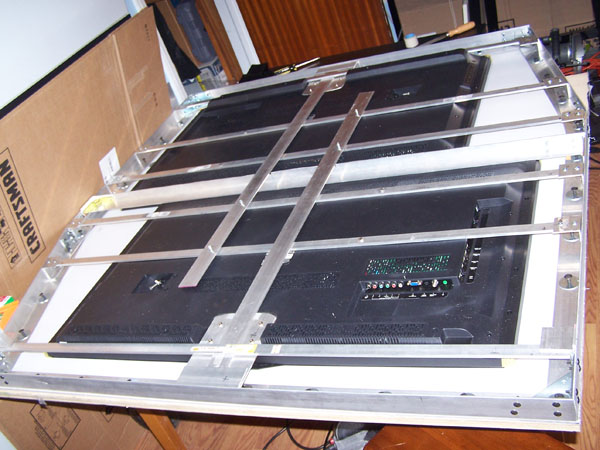

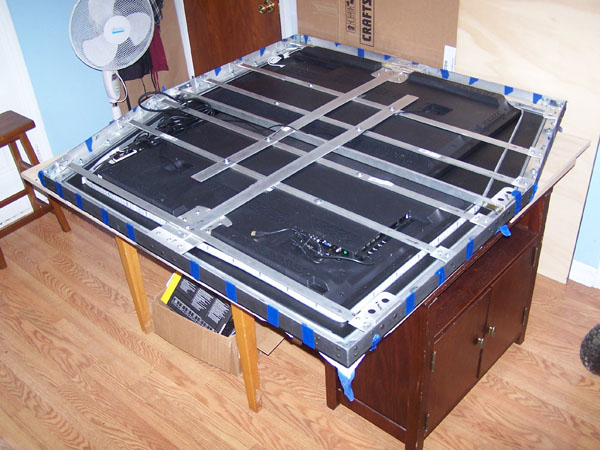

The outer frame is bolted together and support pieces are installed, below shows the first test fit and the final placement of the TV's.

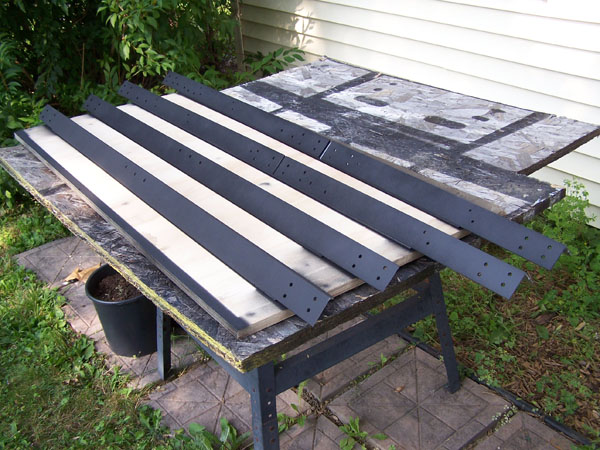

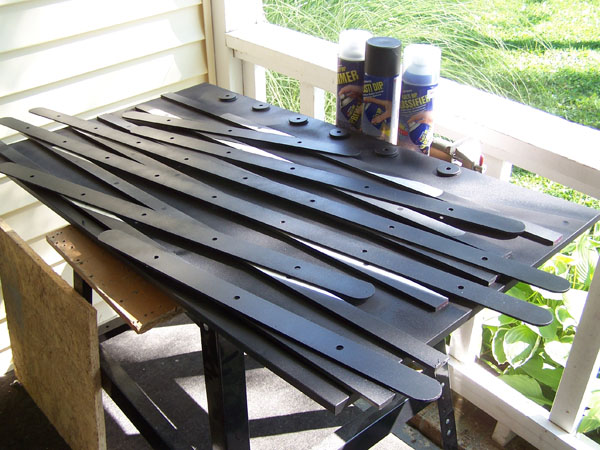

The aluminum framing was primed and sprayed with several coats of black Plasti-Dip.

The sheet of acrylic is masked off in preparation for back painting with black automotive vinyl color.

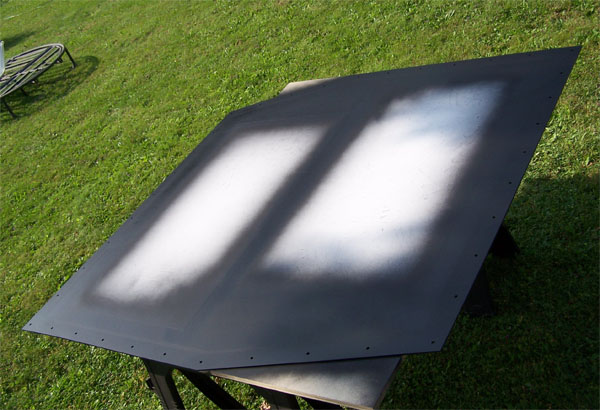

Below shows the finished back painted piece.

I am using black oxide carriage bolts to hold this thing together, they can't attach directly to the acrylic because it would crack so I am making support pieces and spraying them front and back with black Plast-Dip.

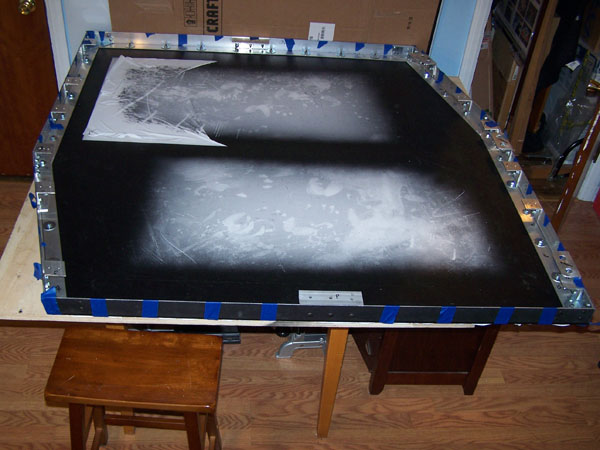

The framing is bolted onto the back painted acrylic and the masking will be removed.

Everything is put together, but it is too heavy for me to flip over or hang on the wall... I will need help.

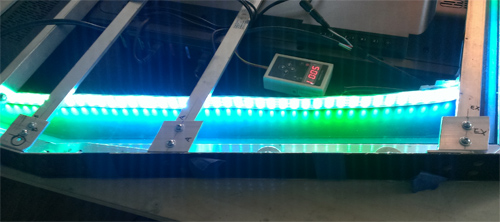

Below is a closer look at the dual row 5050 SMD programmable LED strip that outlines the work and the controller for it, at sixteen feet the SMD LED strip made it around both TV's with almost nothing to spare.

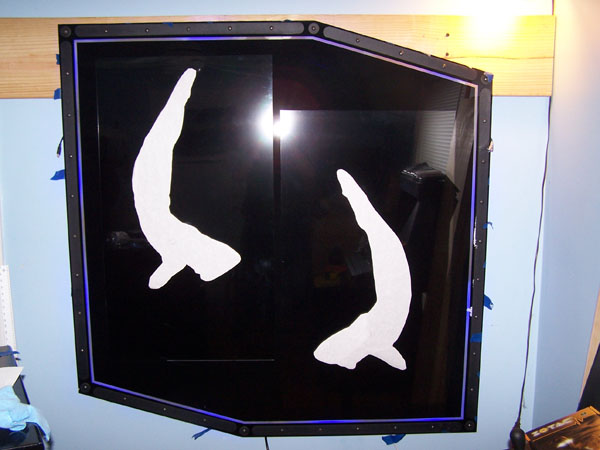

Found help and muscled the 200+ pound work onto my wall, now I see the flaws. I left a thin line of masking material under the diver and have mask under the front flat aluminum angle on the shark side edge.

The whole thing will have to be disassembled and fixed, but again I will need help to take it back off the wall, in the meantime I can work on backgrounds.

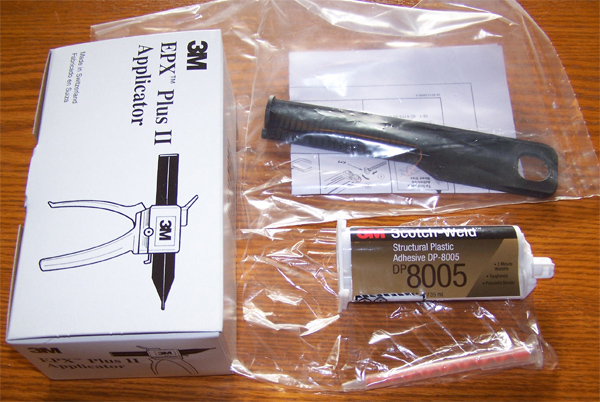

Below is what $115 USD will get you, and that is a good price for this industrial adhesive from what I was seeing. This is 35 mL of the only translucent adhesive capable of bonding HDPE to polycarbonate acrylic and the required applicator gun for it, 10:1 mixing tip and 10:1 plunger.

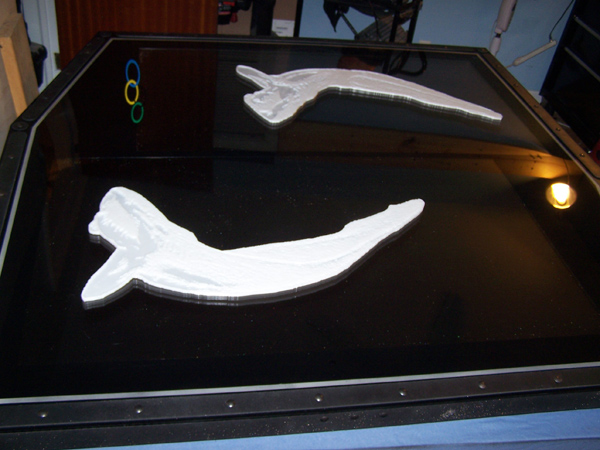

I quickly installed both lithophanes, since the adhesive only allowed for a 3 minute work time. After everything fully cured I applied the olympic ring vinyl decal to the front.

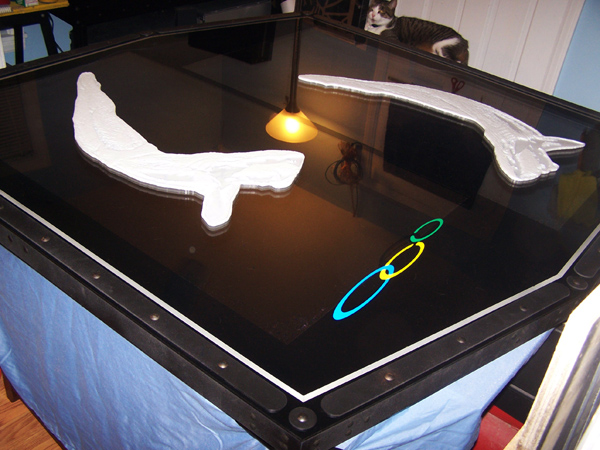

Here's the view from the other side...

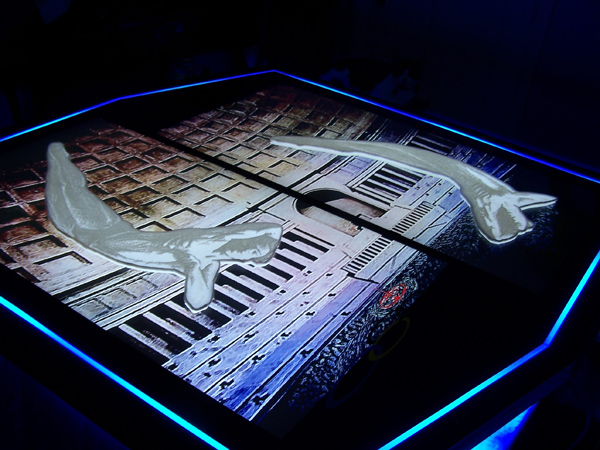

Now with the lights turned down.

Close up...

Closer...

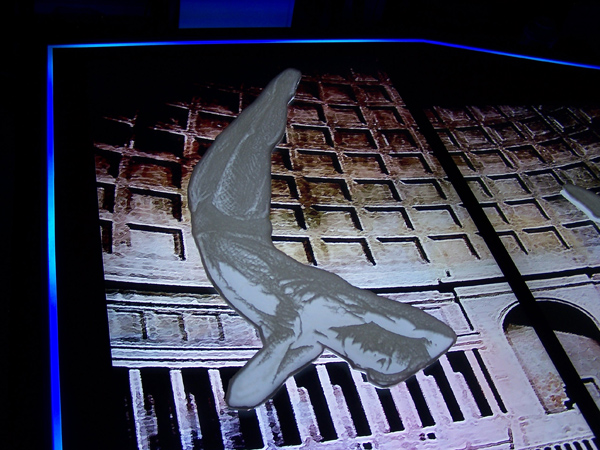

The shark.

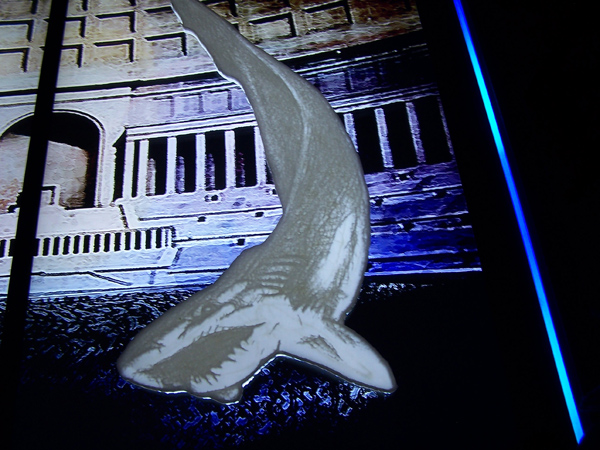

Both lithophanes...

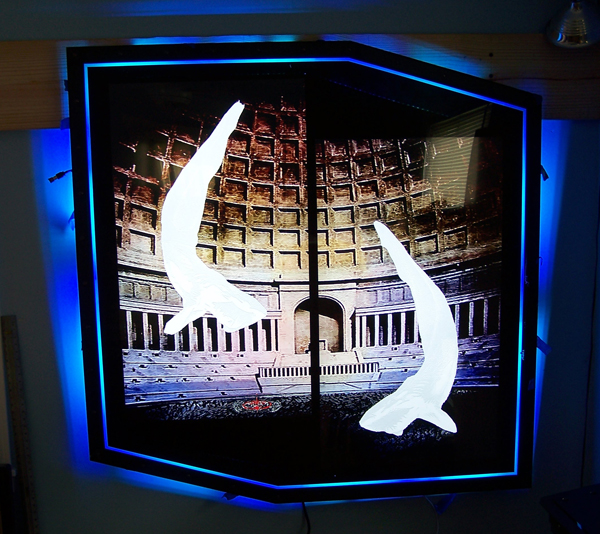

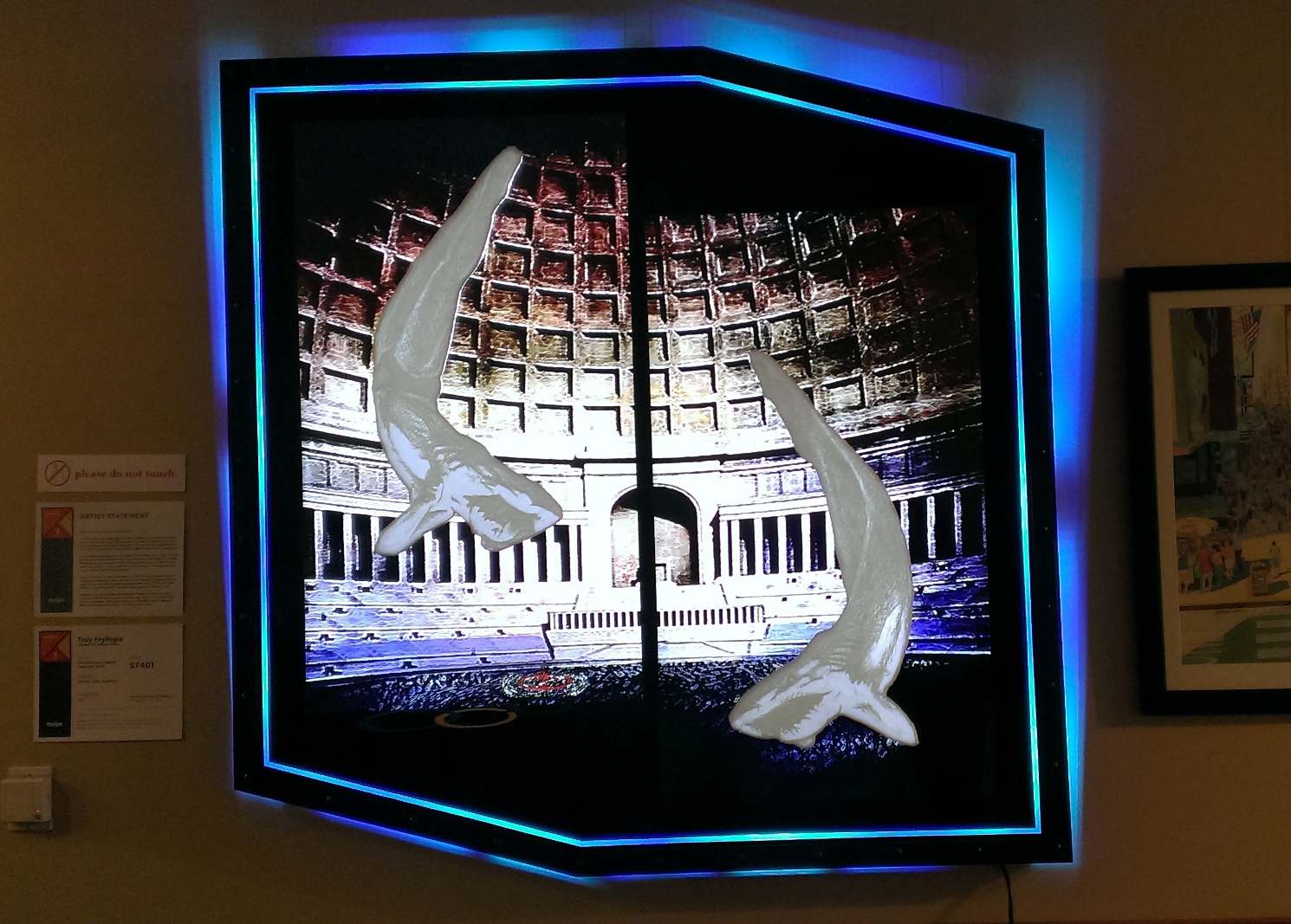

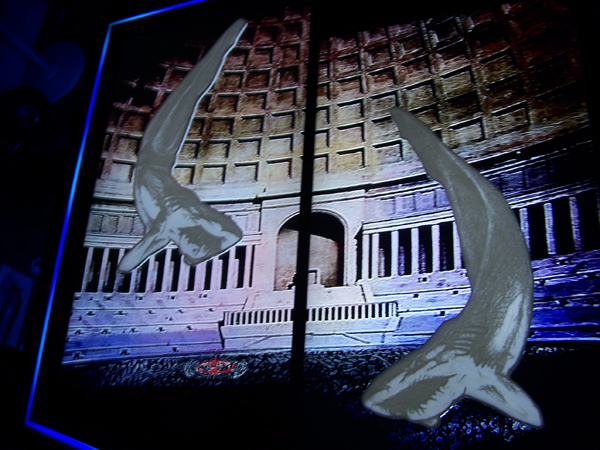

Here it is freshly installed on the wall at the DeVos Place Convention Center, if you are in Grand Rapids during ArtPrize come check it out.

The artist statement that accompanies the work reads as follows:

In 1988 Olympic diver Greg Louganis injured his head on the springboard and bled into the pool, that same year I began a career as a butcher. In the image the shark is swimming toward a blood droplet hitting water, the red ring it forms is detached from the other four Olympic rings which are floating away forming the number eighty eight.

My original dual image sketches of the shark and diver were done in 1992, but in this work the paranoiac critical shark is the diver mirrored with both images CNC carved into lithophanes from an actual 24"x30" white butcher block that I've spent ten plus years cutting meat on. The four detached Olympic rings are cut from sign vinyl and exist on the same plane as the lithophanes.

The shark and diver are each illuminated by its own 50" 4K Ultra High Definition TV showing white silhouettes behind them while also displaying the digital background image. The piece is subtly animated by programmable dual LED strip lighting that reflects off the inner aluminum to simulate rippling water and outline the frame.

Designed using free 3D software and fabricated entirely from scratch by hand in a small 10'x12' home work shop over the course of six months, it's built out of back painted polycarbonate sheet acrylic, black spray rubberized aluminum angle and black oxide carriage bolts, at 5'x5' it is my largest work to date.

ArtPrize 2014 Vote Code: 57401
